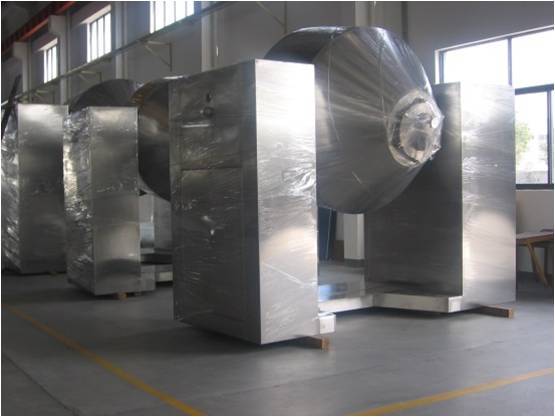

Glass Lined Rotary Vacuum Dryer
Glass Lined Rotary Vacuum Dryer Glass Lined Rotary Vacuum Dryer Glass Lined Rotary Vacuum Dryer

Glass Lined Rotary Vacuum Dryer

9000 USD ($)/Set

Product Details:

  • Condition New
  • Material Other
  • Computerized Yes
  • Automatic No
  • PLC Control Yes
  • Mixer Type Planetary
  • Shaft Single Shaft
  • Click to view more

Price And Quantity

  • 9000 USD ($)/Set
  • 1 Set

Product Specifications

  • Low Energy Consumption
  • Planetary
  • No
  • 440V
  • Other
  • Other
  • Single Shaft
  • Yes
  • Yes
  • AC Motor
  • 13months
  • Electric
  • New

Trade Information

  • Western Union, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Cash in Advance (CID)
  • 45DAYS
  • Yes
  • Sample costs shipping and taxes has to be paid by the buyer
  • International standard
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India
  • ISO 9001

Product Description

、working principle

This dryer under the vacuum condition, carries on theheating in the jacket by the steam or the hot water, is directly through the hotenergy in the shell inside and the wet materials contact, depends on the tubebody rotation, tumbles unceasingly the material. After the material heatabsorption evaporates the steam, extracts outside continuously the tube throughthe vacuum pump after the steam exhaust pipe, thus speeds up the material thedrying velocity, tumbles unceasingly along with the material, achieves thematerial even dry goal. This equipment and the heating area same general dryingbox and the kang type heater compares, the dry thermal efficiency may becometime of enhancement, and can improve the work condition and the labor intensity.


2、Use of    GL RCVD

This factory production dryer is one kindof multipurpose machine, is suitable in powdery or granular material vacuumdrying and the mix, also is suitable specially in has the following requestmaterial.

    1). Cannot accept the high temperature;

2).  Easy to oxidize;

3). Has the strictrequest to the crystallization shape;

4). Has the strictlimit to the metallic ion content;

5). Requests theremaining volatile matter content to be extremely low;

6). Dry whendischarges the steam must recycle.

The material the dry merit may evaporateunder the vacuum for the volatile matter under the low temperature, may besuitable hotly sensitive, the hatred oxygen class material is dry, in the shellof tank the glass lining, has smoothly, clean does not cake characteristic ofthe material

Uses this aircraft to be possible toarrange several operation sequences in a machine completes successively. Thereforecan save the equipment, reduces the operating time, saves the energy, reducesthe labor intensity, reduces the leak and the impurity mix opportunity, thusmay obtain the high-purity product.



1)Design pressure:

Vessel inside:-0.1Mpa(vacuum)     Jacket<0.1Mpa


Vessel inside: -0.1Mpa(vacuum) jacket<0.1Mpa

3)Medium: Organicpowder material (PH<12)in the shell, water or vapor in the jacket.

4) Maximumtemperature: 140℃ (forexample when user request oil heating may be bigger than with design relationtemperature 140℃)


                       4、Operationspecification of dryer

1)The closure putsthe material hole cap

2)Opens feeds thelid, starts to feed, feeds the volume not to have to surpass the nominal volume50%.The material does not have to smuggle has massive hard.

3)The closurefeeds covers

4)Closes the powerswitch, the shell of tank starts to revolve.

5)On the openingpumping air pipeline vacuum valve, in the pot namely implements the negativepressure operation.

6)The openingpumping air heating with the steam valve, (or hot water valve, cooling watervalve), must pay attention, when this aircraft heating or cooling, should carryon slowly. Heat resistant emergency cold impact 110℃,thermal shock 120℃.Accordingto the pot in the material granularity, the water content and the permissionheating temperature, should use the suitable elevation of temperature speed, inthe clamp cover steam pressure is highest does not have to surpass 0.1Mpa.

7)In after the potthe material dry mix completes, the cut-off steam and the aspirator line, thenpass the cooling water to the clamp cover, waits the material to cool after thespecified temperature, presses the electrical machinery “the stop” the button,causes to put the position which the material mouth changes to needs.

8)Turns in theexhaust pipeline the dump valve, causes the shell of tank interior connectionatmosphere.

9)Turns on lathethe pine to put the fastening installment which the material covers, therotation puts the material valve cover, then puts the material.

10)materials dumpthe shell of tank completely, should sweep clear in the pot the residuum, andcloses puts the material hole cap.

11)In the machineoperation process wants when carries on the middle sampling observation, shouldaccording to the 7th stipulation cause the machine first to stop, then presses8, 9 stipulations again, opens puts the material hole cap to carry on thesample.After the sample finished, the closure puts the material hole cap,should according to 4, 5, 6 and so on the strip stipulations drive.



1)In the rollingbearing fills up the MOS2 compound calcium lubricant.

2)In the worm geardecelerator recommends uses the 40# machine oil.

3)On the exhaustpipe teflon packing ring itself had the lubricity, therefore should not againspread the lubricant in the packing surface, in order to avoid pollutes in thepot the material.

4)When the thisaircraft does not use for a long time, should survive the shell of tank in thematerial to discharge, and is clean with the clear water flushing, turns in theclamp cover the drain cock, survives the clamp cover in the water platoon tofall to the part does suitable rust prevention processing.

5)The clean or replaceswhen the filter the cloth, should open feeds the lid, grips the filter with thehand to revolve several, then upwardly takes out the filter, takes out andinstalls when the filter should be specially careful, do not have to bump inthe bad pot the glass lining level.

This factory provides the this aircraft tothe user to need each kind of vulnerable seal packing collar spare parts.
